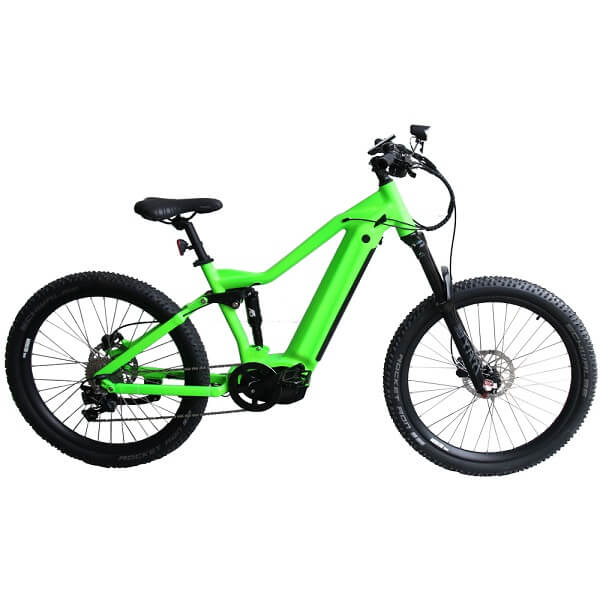

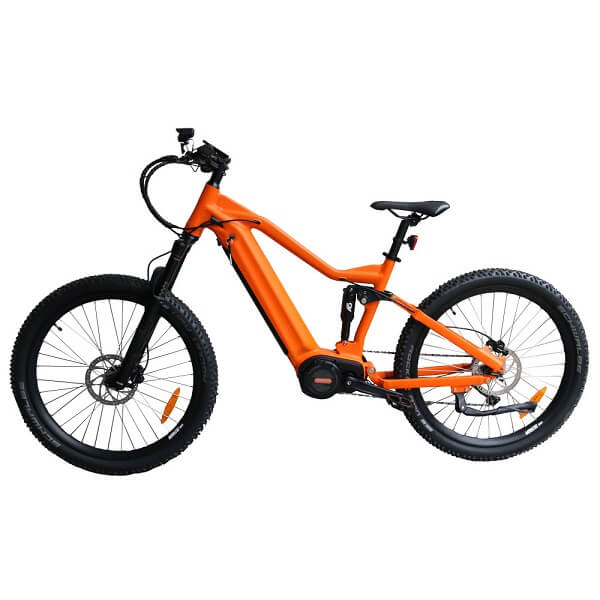

KK2023 Electric Mountain Bike (27.5 Inch, 1000W Mid Motor, 672Wh, Full Suspension)

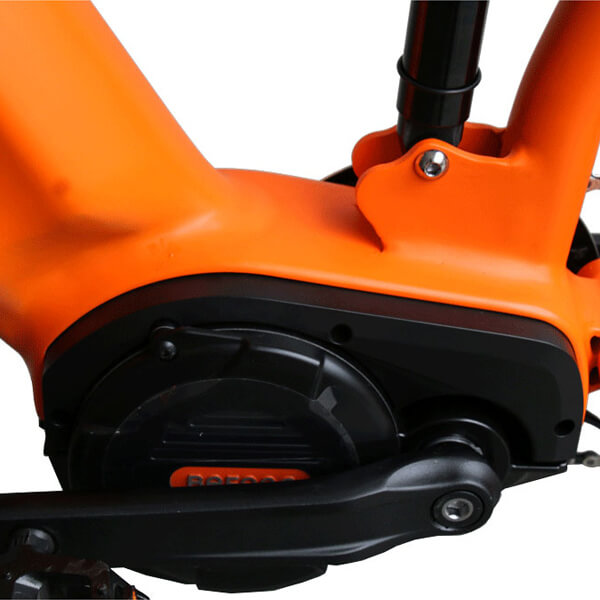

  • Motor: 48V 750W Bafang brushless mid-drive motor provides more than enough power to your daily commute, a cruise on the mountain, or a meander along your favorite trail, max speed can be reached 40km/h.
  • Battery: The Samsung battery has a capacity of 14Ah, the charging time will take 4-6 hours and a battery life of 800~1000 cycles.

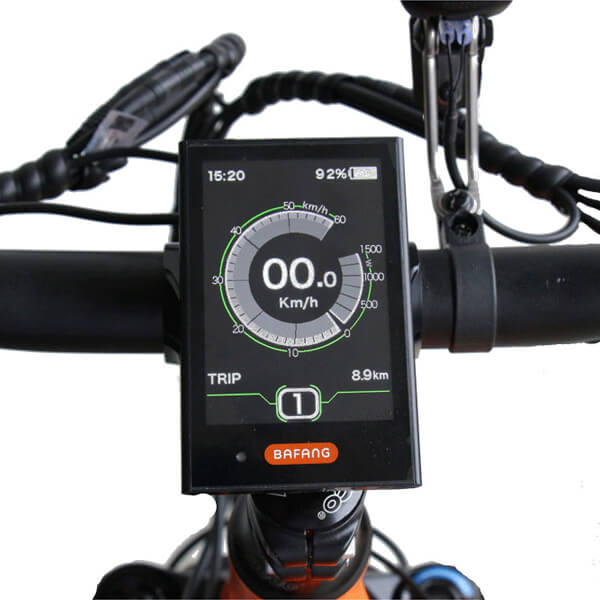

  • Display: The Bafang colorful LCD display guarantees you can read your statistics easily.
  • Brake: Front/rear TEKTRO oil hydraulic brakes are more efficient, so you need to apply less pressure at the lever for an equal level of braking power.

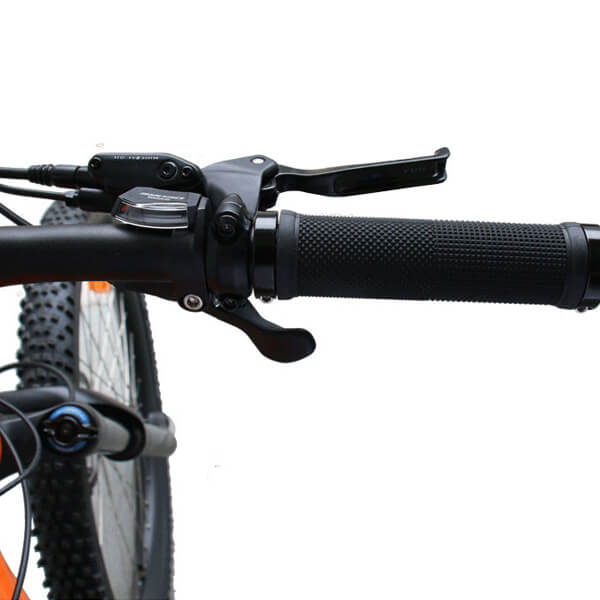

  • Shifters: Adjustable Shimano 9-speed transmission system which increases hill-climbing power, further range variation, and greater terrain adaptability.
Bicycle Specifications
Model NO. KK2023

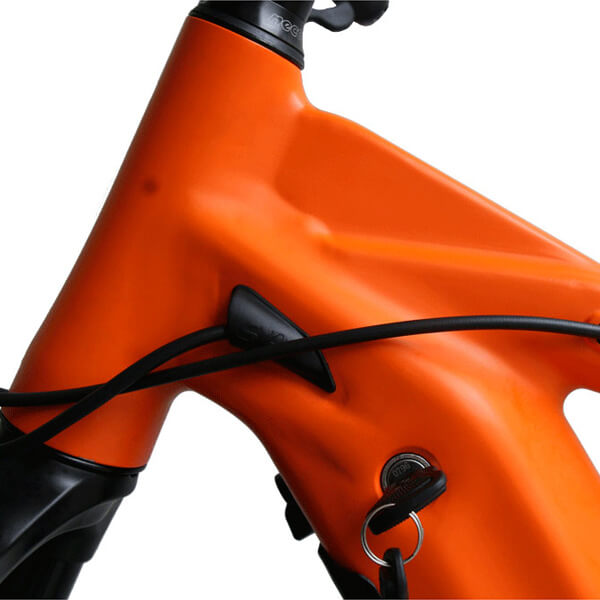

Frame 27.5″, Aluminum Alloy AL6061
Fork Suntour Full suspension XCM34 LO 15AH2
Gear Shimano ARDM3000DSGS 9 speed
Shifters Shimano ASLM3000RC 9 speed
Free Wheel Shimano ACSHG2009132 9 speed
Front Brake Tektro Oil Hydraulic brake alloy
Rear Brake Tektro Oil Hydraulic brake alloy
Pedals Wellgo B087 9/16 CR-MO BS black
Rim HJC DP-45*27.5*13G*36H, A/V, ALLOY

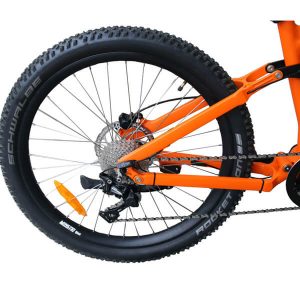

Tires CST 27.5*3.0, 60 TPI
Inner Tube CST 27.5*3.0
Spokes SLE 13G
Handlebar Promax HB-3188-W640, 8°, R18, L200,H50.9, 2.3*2.8*2.3
Stem Promax MA-410 alloy
Grip SR VLG884AD2
Brake Lever Tektro Alloy Black
Head Set NECO H383EM 44*56*39.8
Saddle Justek SI-1285URN
Electric System
Battery 48V 14Ah, SAMSUNG 3500 cells
Charger SSLC109V55, 48V2A, GS/CE SAA/ROHS
Charge Time 4~6 hours
Recharge Times 800~1000 times
Motor Power Bafang M620 48V 750W~1000W Middle drive
Controller  Bafang 48V
Display Bafang 48V Colorful C-18 display
Max Speed 45km/h
Distance For Charge 50-60km
Shipping Details
Packing Size 1960*250*1155mm
40″ Hq(Pcs) 120pcs
20″ Hq(Pcs) 54pcs
